Details

  • Project Type Hotel - New Build
  • Services Provided BIM Framing, BIM Modeling, BIM Shop Drawings

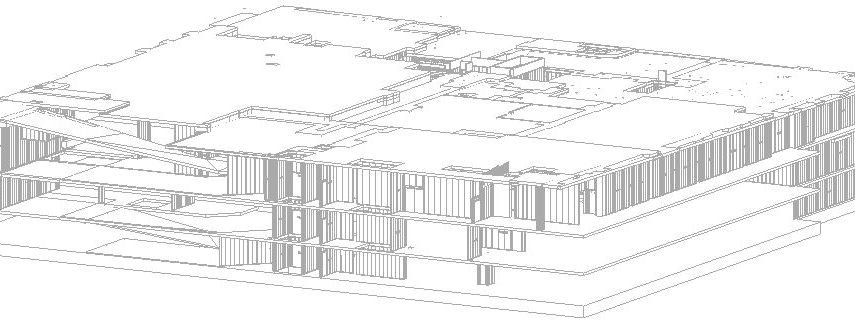

  • Project Profile The Project is on a 40,135-square-foot lot. The structure is a 12-story, post-tensioned, concrete hotel building with a pool deck and three levels of subterranean parking, a total of 361,147- square-foot.

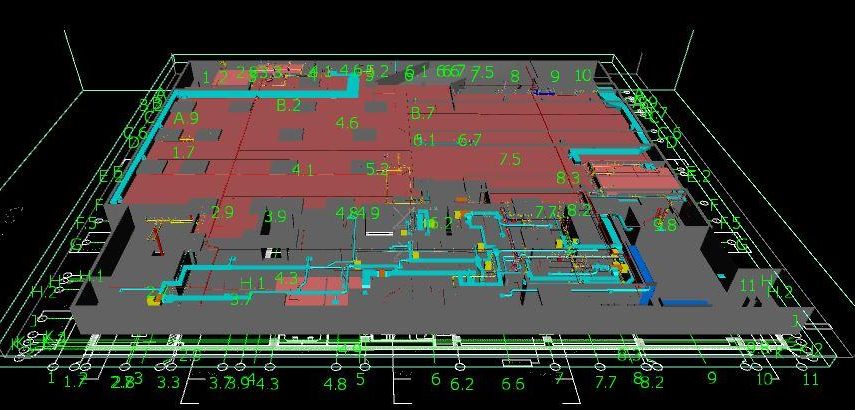

  • Kelar Pacific Role Prepared complete light gauge framing model / drawings based architectural / structural construction drawings (CDs) for interior walls, soffit and ceilings for specific areas and levels. Provided complete models for electrical equipment, conduits and lighting. Managed BIM models for coordination and deliverables to subs for coordination, shop drawings and as-built. Provided Navisworks files and clash reports before each coordination meeting and provided penetration model and drawing based on the provided specifications, drawings, and models by MEP and structural contractors / consultants.
