3D Laser Scanner and Robotic Total Station

Perform your own scanning and point layout.

Rentals are a great way to take the next step in adding 3D laser scanning and total station layout to your design and construction process. Whether used for creating accurate as-builts or tracking phase progress, 3D laser scanning continues to excel in cases where accuracy (down to 1mm) matters. The total station performs equally as well when it comes to field point layout.

Ready to try scanning and total station layout? Renting is a great way to get your team familiar with the technology before making a large capital investment. It’s also helpful to try out equipment before purchasing new or pre-owned units.

Kelar Pacific provides well-known brands including Faro and Leica 3d laser scanners, and the TopCon Total Station. We can also provide short term subscriptions for Leica Cyclone REGISTER and Faro Scene. Our technical specialists are ready to assist with training on data acquisition and post processing, if needed.

Review our daily, weekly, and monthly rental rates, then contact us with your rental dates.

button - Faro S350
button - Faro S350 + Swift
button - Faro X330

button - Leica RTC360
button - Leica BLK360

button - TopCon LN150
button - Aeropoints

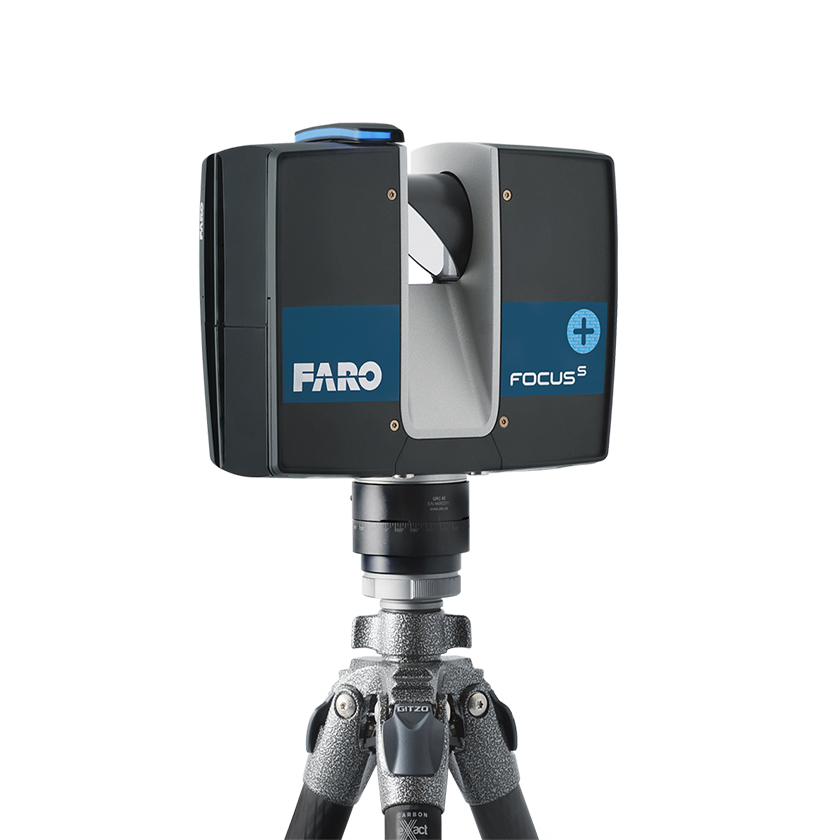

Faro S350

Laser Scanners for Short, Medium and Long Range Applications

  • Accuracy — Highest accuracy and range by using a combination of the most advanced sensor technologies.
  • Rescanning of Distant Targets — The Scan Group feature identifies multiple areas to be rescanned with higher resolution to either perform accurate target detection or to capture smaller areas of interest with greater detail.
  • IP Rating 54 and Extended Temperature Range — With the sealed design and certified with the industry standard
    Ingress Protection (IP) Rating, IP54, the Focus can be used in wet weather conditions at temperatures from -20°C to 55°C8.
  • Compact and Portable — Focus Laser Scanners are the smallest and lightest devices in their performance class.
  • On-Site Compensation — With the on-site compensation functionality, users can verify and adjust the FocusS compensation immediately before scanning, ensuring high-quality scan data and traceable documentation.
  • On-Site Registration — During on-site data capture, the laser scanner immediately transmits scan data wirelessly to FARO SCENE for real-time scan processing and registration, providing efficiency and time savings.

Rental Package includes:
– FARO S350 3D Laser Scanner
– Lightweight Scanner Tripod
– Optional Six Sphere Target Kit with Tripods
– Quick Release Pano Head
– FARO SCENE Scan Registration Software
– Two Scanner Batteries Up to Five Hours Life Each
– Battery Charging System
– Two 32G SD cards

Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement
– External Hard Drive for Data Transfer (recommended)

Faro Focus Swift

The First Integrated Mobile High-Accuracy Laser Scanner

  • Lightweight and Mobile 17.5kg (38.5 lbs)
    • Easy to walk with in indoor locations with less bulk
    • Ideal for fast walk-throughs or detailed scans
  • Innovative Automation
    • Eliminates manual processing steps
    • Combines several leading technologies, including FARO’s patented Focus Laser Scanner
  • Speed vs. Accuracy
    • As-build capturing jobs that would require for example 1 hour or more with stationary 3D laser scans could be accomplished in about 6 minutes with Swift
    • Provides 3D accuracy from 2mm to 10mm
    • Scans up to 1 million points per second via mobile and 2 million via stationary
  • Operating Temperatures
    • Designed for a wide range of thermal conditions, operating from 5°C to 40°C
    • Operates in temperatures as low as -10°C
    • Can be stored in temperatures up to 60°C, although 25°C is recommended
  • Multiple-Software Compatibility
    • Compatible with FARO As-Built™ BuildIt Construction and WebShare Cloud
    • Directly imports in any CAD system with 3D point cloud capabilities
    • Simplifies modeling workflow with automated processes
    • Optimizes scan to BIM workflow
  • Intuitive Design
    • Comfortable handles with simple push operation
    • Lightweight for easy mobility and setup wherever needed
    • Versatile for factories, office buildings, hospitals and more
  • Wide Powerful Output Options
    • Exports scan points
    • Compatible with ASTEM 57, LAS, XYZ file formats
  • Enhanced Battery Operation
    • Two hours on internal battery
    • Operation time can be extended using additional battery packs
    • Continuous cable-free operation without external power

Rental Package includes:
– FARO S350 3D Laser Scanner
– Swift Trolley
– ScanPlan
– Lightweight Scanner Tripod
– Optional Six Sphere Target Kit with Tripods
– Quick Release Pano Head
– FARO SCENE Scan Registration Software
– Two Scanner Batteries Up to Five Hours Life Each
– Battery Charging System
– Two 32G SD cards

Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement
– External Hard Drive for Data Transfer (recommended)

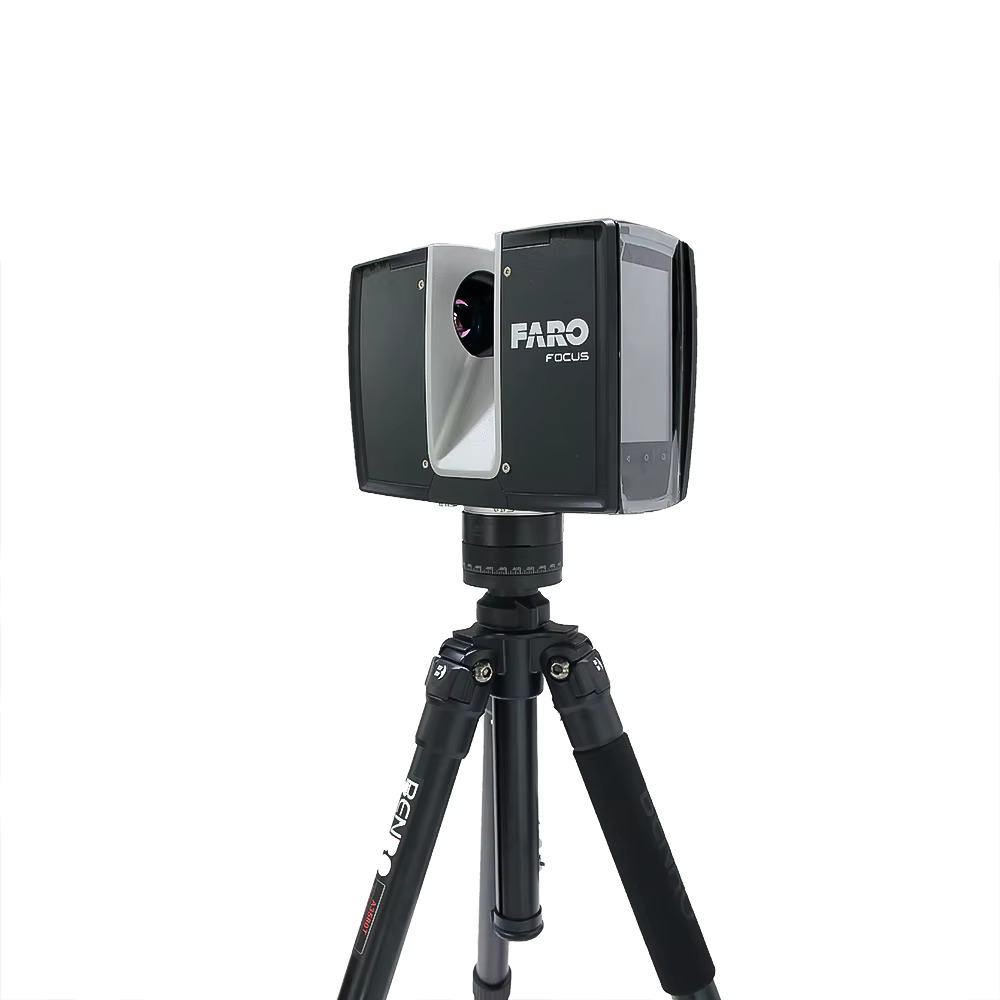

Faro Focus 3D X 330

Features include:

  • Extended Scanning – 330m Range — The Focus3D X 330 can scan objects up to 330 meters away. Large buildings, land-site excavations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion.
  • Easy Positioning – Integrated GPS Receiver — With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
  • Outdoor Scanning Capability — The Focus3D X 330 now is able to perform fast and highly precise scanning in direct sunlight.
  • Low Noise Performance — The Focus3D X 330 delivers extraordinary scan data quality with very low noise.
  • Compass — An electronic compass is included within the unit to associate directional data to your scans and facilitate the auto-registration process.
  • Height Sensor (Altimeter) — Each scan includes height information which can be used to scan different foor levels in a building. The data can then be used to differentiate the floors.
  • Dual Axis Compensator — To minimize the number of targets needed, the dual axis compensator enables every scan to have integrated level information.
  • WLAN (WIFI) — WLAN remote control allows starting, stopping, viewing or downloading of scans at a distance.

Rental Package includes:
– FARO X330 3D Laser Scanner
– Lightweight Scanner Tripod
– Optional Six Sphere Target Kit with Tripods
– Quick Release Pano Head
– FARO SCENE Scan Registration Software
– Two Scanner Batteries Up to Five Hours Life Each
– Battery Charging System
– Two 32G SD cards

Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement
– External Hard Drive for Data Transfer (recommended)

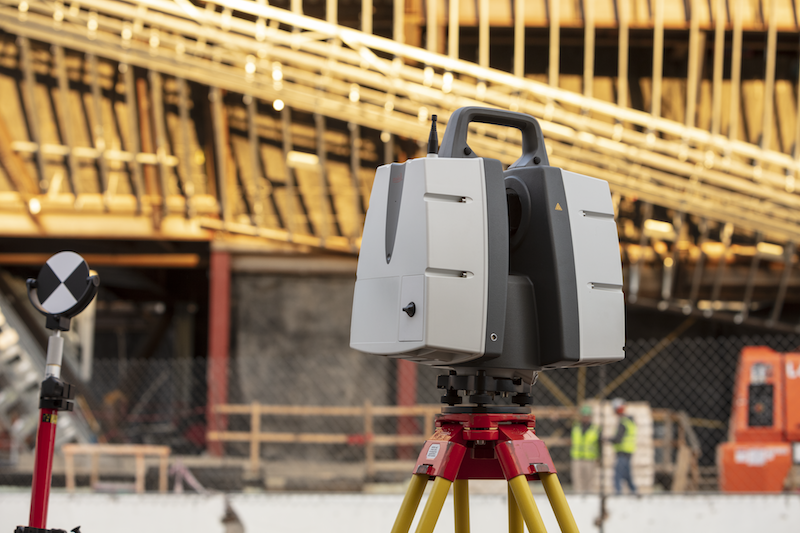

Leica RTC360

Highly portable, highly automated, intuitive and designed for maximum productivity, the RTC360 solution efficiently combines the RTC360 a high-performance 3D laser scanner, Leica Cyclone FIELD 360 mobile-device app for edge computing for automatically registering scans in real time, and Leica Cyclone REGISTER 360 office software to integrate your 3D model seamlessly into your workflow.

Features of the RTC360:

  • Fast — Capture scans, including enriching High-Dynamic Range (HDR) imagery, in less than two minutes.
  • Agile — Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.
  • Precise — Automatically record your moves from station to station to pre-register your scans in the field without manual intervention.
  • Pre-register in the Field — Automatically record your moves from station to station to pre-register your scans in the field without manual intervention.
  • Preview — Directly publish your captured data from Cyclone FIELD 360 to Leica TruView Cloud to quickly exchange project information prior to import and registration.

Rental Package includes:

– Leica RTC360 3D Laser Scanner
– 256 GB Industrial Flash Drive x2
– GST80 Lightweight Tripod
– GEB361 Battery x4
– GKL341 Charging Station
– GEV282 AC Power Supply
– RTC360 Backpack
– iPad Pro with preinstalled Cyclone Field 360

Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement
– Leica Cyclone REGISTER 360 Time Limited License for post-processing
– External Hard Drive for Data Transfer (recommended)

Leica BLK360

A portable laser reality capture solution that generates a full 3D representation of any space in just minutes. By combining 3D point cloud technology with panoramic photography, the BLK360 creates a full 3D representation with precision measurements, full color rendering, and even thermal imaging.

Features of the BLK360:

  • Fast  The BLK360, weighing only 2.2 lbs., is a simple way to capture reality with a compact laser scanner delivering on-the-fly 3D data capture. Laser scan 360,000 points per second, and complete a full-dome scan with a 360° 150 MP spherical image genera-tionin less than three minutes. The BLK360 allows high, standard, and fast resolutions and can produce High-Dynamic Range (HDR) and thermal imaging.
  • Agile — The Leica BLK360 captures the world around you with full-color panoramic images overlaid on a high-accuracy point cloud. Simple to use with the single push of one button, the BLK360 is the smallest and lightest imaging laser scanner of its kind. Anyone who can operate an iPad can now capture the world around them with high resolution 3D panoramic images.
  • Precise — Using Leica Cyclone REGISTER 360 and the Autodesk ReCap Pro mobile-device app, the BLK360 streams image and point cloud data to an iPad or final project data to Cyclone REGISTER 360 via Wi-Fi. With automated workflows in both software offerings, the BLK360 dramatically streamlines the reality capture process thereby opening the technology to non-surveying individuals.

Rental Package includes:

– Leica BLK360 3D Laser Scanner
– 256 GB Industrial Flash Drive x2
– GST80 Lightweight Tripod
– GEB361 Battery x4
– GKL341 Charging Station
– GEV282 AC Power Supply
– BLK360 Backpack
– iPad Pro with preinstalled Cyclone Field 360

Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement
– Leica Cyclone REGISTER 360 Time Limited License for post-processing
– External Hard Drive for Data Transfer (recommended)

Propeller – Aeropoints

Smart Ground Control Points

— Large memory – Store data from 100+ flights before upload is required.
— In-built GPS – Records positioning data every 10 seconds.
— One button operation – Just place-and-press. Indicator light displays current status.
— Solar powered – Low maintenance. Charges while running. Powerful LiFePO4 battery for long storage life.
— Lightweight – Each set includes a carry bag for easy transport.
— Strategic design – Optimised for recognition by processing software.
— Rugged and durable – Water-resistant. Aerodynamic shape prevents shifting and aids water runoff.

Specifications

  • Dimensions – 544mm (W) x 544mm (L) x 32mm (H)
  • Weight – 1.55kg (3.3 lb)
  • Power supply – 5000 mAh 3.2 V (16 Wh) LiFePO4 battery with solar charging
  • Storage – 4GB Flash
  • Wireless connectivity – 2.4GHz WiFi (802.11 b/g/n)
  • Operating temperature – 0ºC/32ºF (min); 40ºC/104ºF (max)

Rental Package includes:

– Set of 10 Aeropoints
– Carrying bag



Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement

TopCon LN-150 Robotic Total Station

The 3D Layout Tool Designed for Construction Layout

— Construction layout
— Field verification
— Interior building infrastructure
— Foundations and footings
— Utilities and general layout

  • 3D Layout Tool — The LN-150 is a compact, self-leveling, 3D layout tool designed for construction layout. Use the LN-150 instead of theodolites tapes or other layout tools. Rugged and light weight, the LN-150 is ideal for construction layout and as-builts.
  • Waterproof – Dustproof design — Completely sealed housing.
  • Easy Setup and Operation
    — On the ground or decking
    — Mounts on tripod or column clamp
    — Automatic self-leveling
    — Alerts user, if disturbed.
  • Advanced 3D Measuring and Layout
    — Built-in wireless connectivity
    — 100m working range
    — Automatically turns to layout points
    — Tracks a standard prism.
  • Single-operator solution for precise 3D layout
  • Easy one-button self-leveling setup
  • WIFI and long-range Bluetooth® instrument communication options
  • Seamless cloud-connected workflows with Autodesk, Bentley, and MAGNET
  • Use with MAGNET Construct mobile app on your phone or tablet
  • TSshield provides reliable instrument theft deterrence, asset tracking, and diagnostics.
    Angle Measurement Horizontal Angle: 360°
    Vertical Angle: +55° to -30°
    Distance Measurement
    — Prism Tracking Range: 130m
    — Accuracy: ±3mm
    Auto Level
    — Leveling Range: 6°
    Tilt Angle Compensation
    — Compensation: 12′
    Communications
    — Wi-Fi: 802.11 b/g/n
    — Bluetooth: Class 1 LongLink™
    Physical and Environmental
    — Dimensions: 185 x 198 x 332 mm
    — Dust/Water Protection: IP65
    — Operating Temperature: -20°C to 50°C
    — Laser Plummet: Yes

Rental Package includes:

– TopCon LN100 Robotic Total Station
– Tripod
– Battery
– Charging Station
– AC Power Supply

Rental requirements:
– Certificate of Insurance is required
– Kelar Pacific rental agreement
