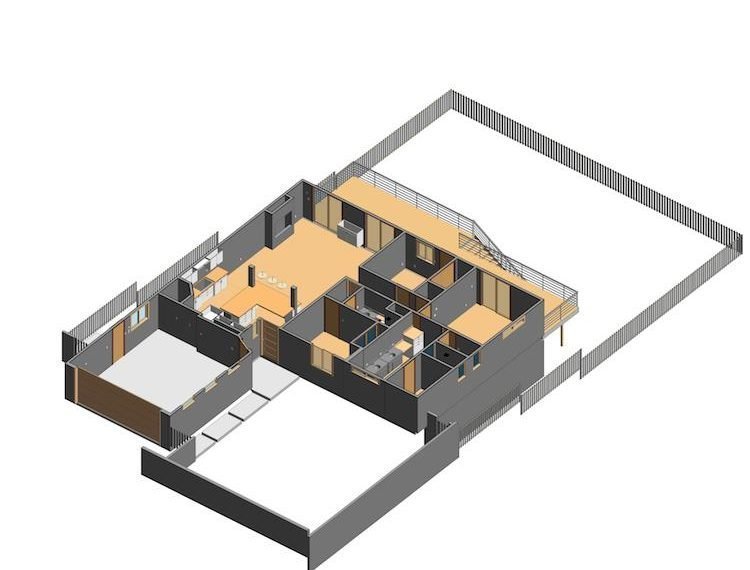

• A 3D rendering of a residential home, and the fenced territory around it.

Details

  • Project Type Single Family - Remodel
  • Services Provided 3D laser scanning, Scan to BIM, BIM Modeling
  • Project Profile Single-family home requiring as-builts for a 1,379 sf, 3 bedrooms and 2 bathrooms remodel.

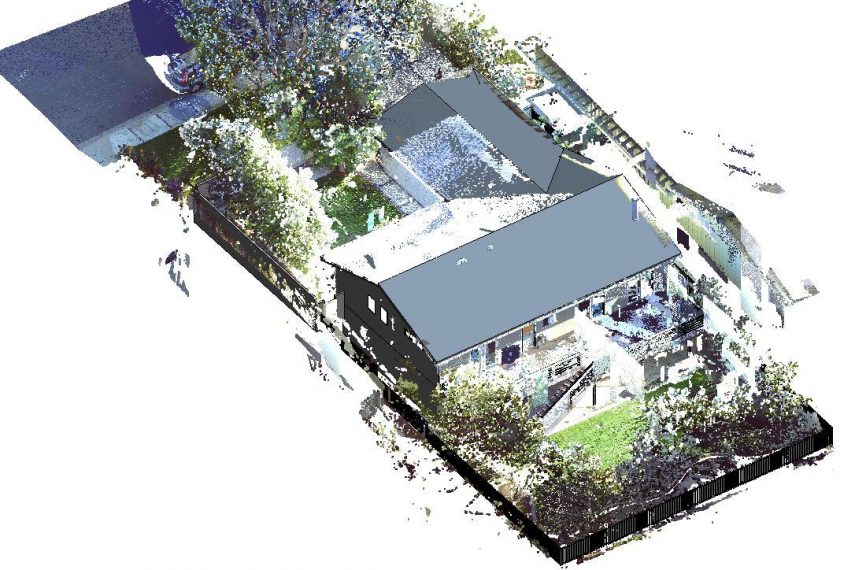

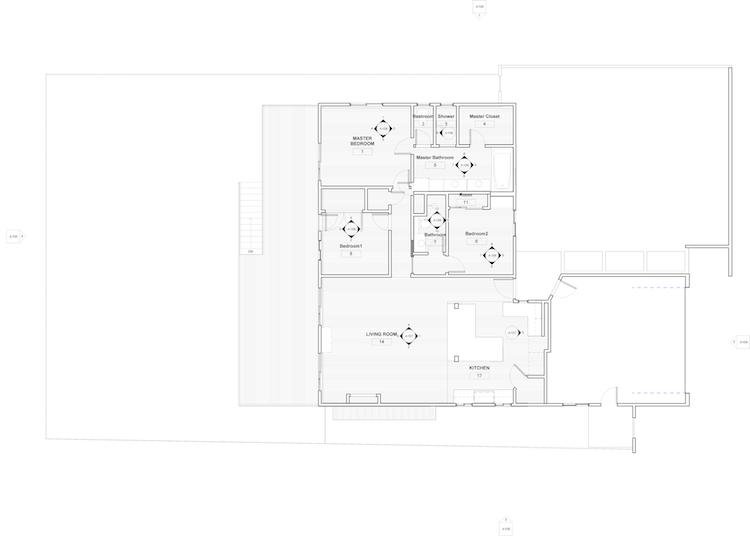

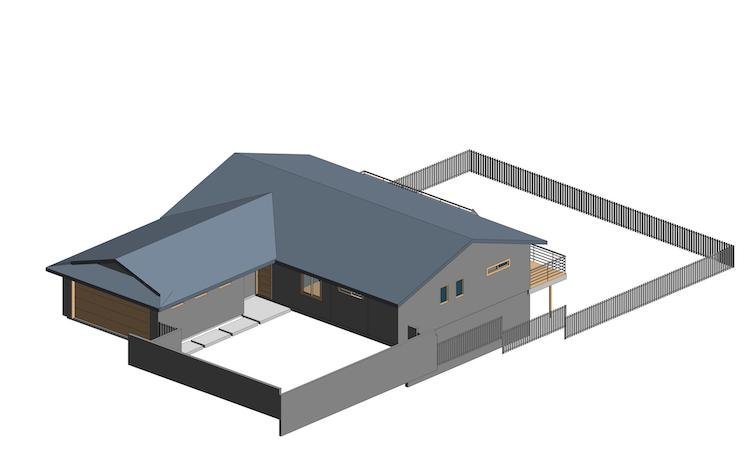

  • Kelar Pacific Role Provided color laser scanning files including exterior and interior areas under ceiling. Created Revit model using 3D laser point clouds including walls, doors, windows, and basic millwork. Further detail was provided using RecapPro for measuring soffits, lighting, ceiling mounted equipment, and window sill heights. Site plan included parking, sidewalks, retaining walls, and exterior elevation. Option to include electrical switches and outlets in Revit and Drawings.
