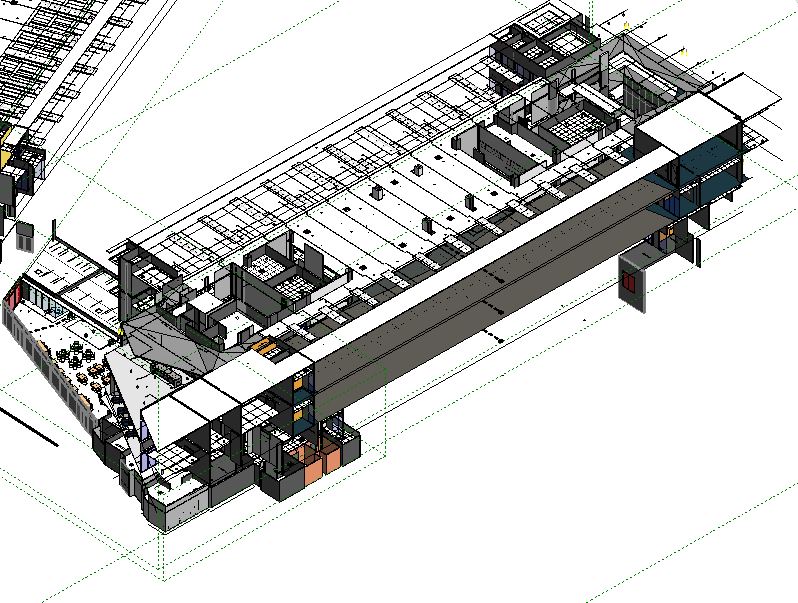

• Sample of BIM sheet metal modeling.


  • Project Type Education - New Build
  • Services Provided Modeling and Coordination
  • Project Profile The $49 million project is a four-story structure housing an 85,000-square-foot college library learning resource center.
  • Kelar Pacific Role Prepare complete BIM Walls and Soffit panels including the no-fly zone areas and penetrations for coordination with other disciplines based on Architectural, Structural, and MEP models as well as documents provided by client. Update models based on coordination meetings with other disciplines and apply the specific requirement / additional framing objects for MEP equipment installation cut sheets, specifications and direction from California Sheet Metal team
