• A 3D model of a chiller room

Details

  • Project Type Industrial - Plant Renovation
  • Services Provided 3D Laser Scanning, Scan to BIM, BIM Modeling, BIM Shop Drawings

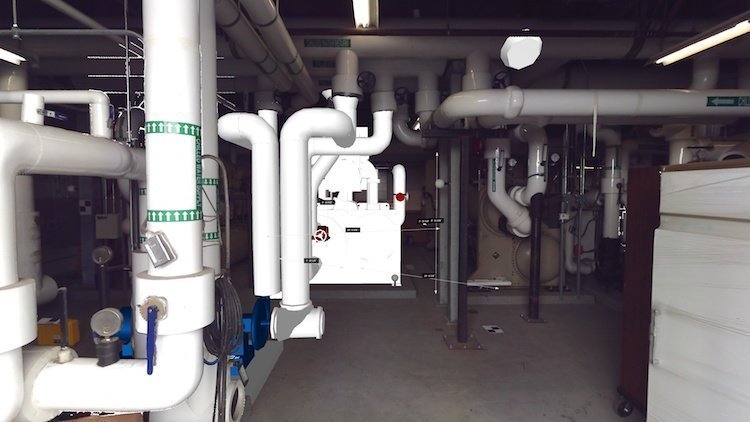

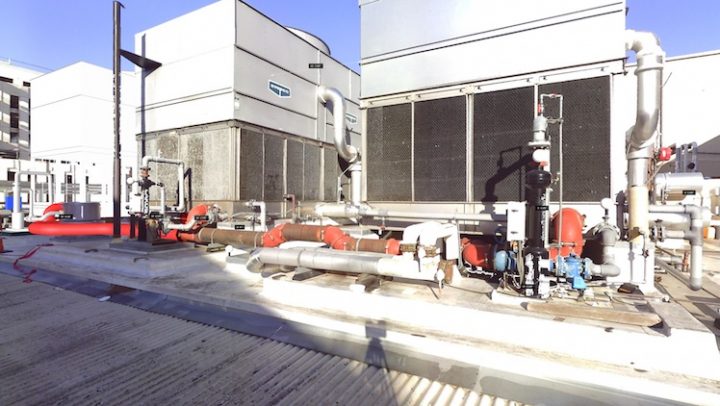

  • Project Profile A central plant required accurate as-builts for an upgrade of the chiller room.

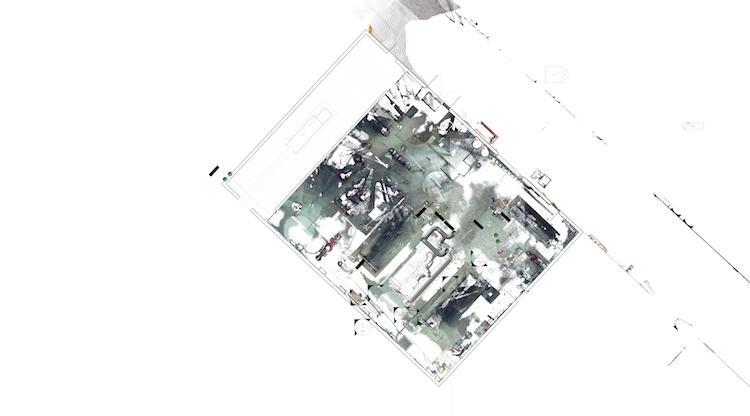

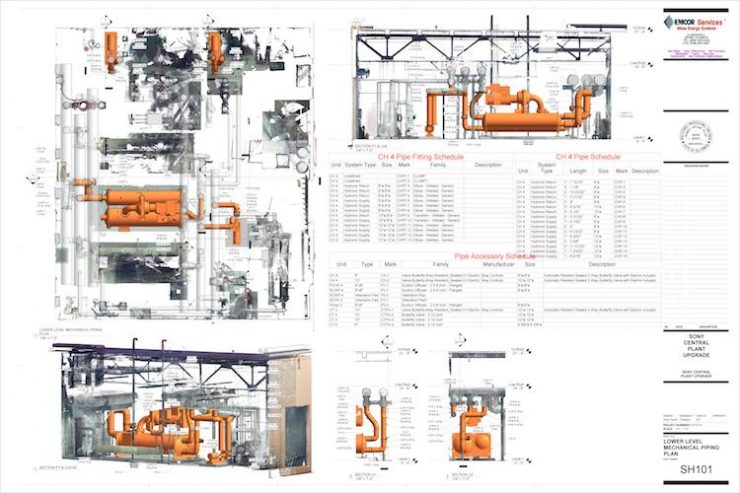

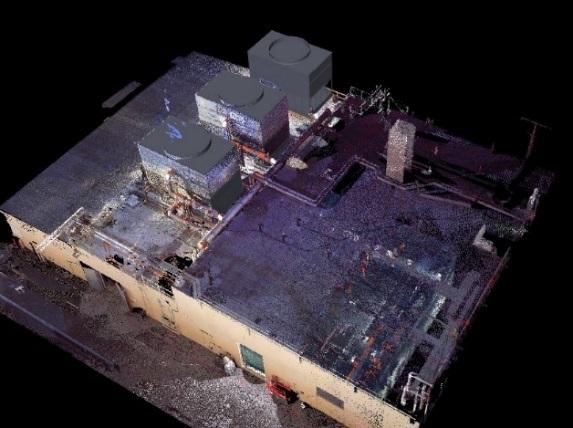

  • Kelar Pacific Role Provided 3D laser scans and created BIM models and shop drawings for all HVAC and plumbing systems in the chiller room. Prepared coordination files in Navisworks and updated the files throughout the renovation.
